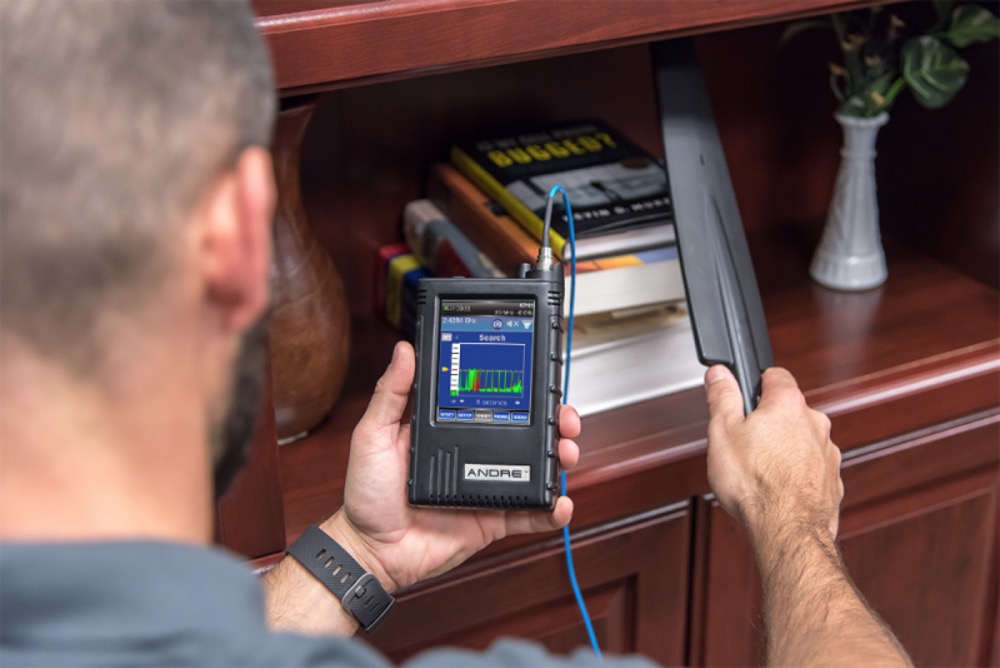

Technical security specialists will appreciate the portability and responsiveness  of the ANDRE

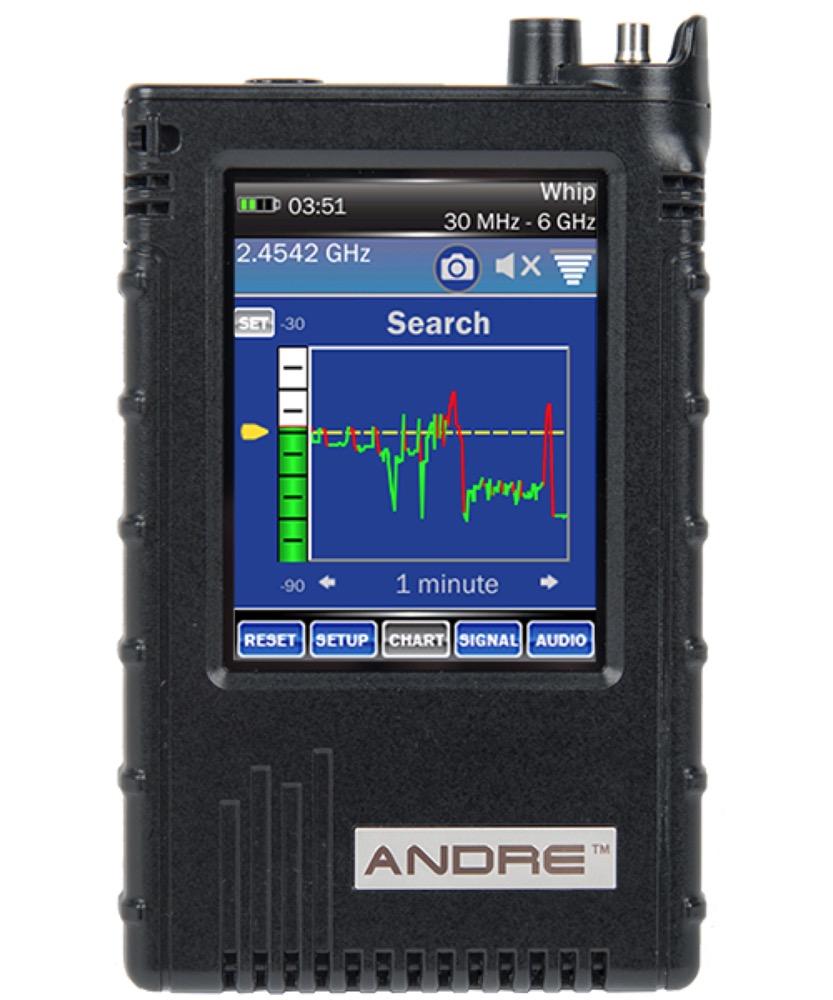

HISTOGRAM DISPLAY

The ANDRE features a signal strength histogram displaying RF levels over userselected time intervals ranging from 5 seconds to 12 hours. Observe differences between (a) digital, (b) analog, and (c) burst signals and set alert thresholds.

SIGNAL INFORMATION AND BAND DETAILS

The ANDRE frequency counter automatically generates a signal list from the strongest signals. Signal frequencies are listed beginning with the strongest signal and can be designated as threatening, friendly, or unknown. Doubletapping a signal provides more details including band classification information.

AUDIO MODE

The ANDRE can demodulate and playback live analog audio. Ten second audio files can be recorded, stored, and played back. The live audio screen displays a bar graph showing received signal strength.

POSTINVESTIGATION RESOURCES

Gather data throughout an investigation for further analysis following a sweep. Review time chart screenshots, playback demodulated audio, and download captured signal lists on any PC while writing your report


APPLICATIONS

Emissions detection of WiFi, bluetooth, cell phones, illicit transmitters, etc. Interference detection and troubleshooting  Contraband detection in correctional facilities,  RF research and development, Wireless industry developers,  Hobbyists and RF enthusiasts,  Educational institutions,  Corporate security surveys for illegal, unauthorized, or threatening   transmitters, Measuring or detecting acoustic leakage or ultrasonic mechanical  vibrations


Trusted Distributor of REI products for 20 years!
RF DETECTOR: Sensitivity: 75 dBm for 3 GHz frequency 85 dBm for probes providing frequency at 500 MHz Stepped attenuation control: 30 dB, 20 dB, 10 dB, Auto, off
AUDIO: Builtin speaker and external headphones with adjustable volume control
DISPLAY 3.5” (4 cm) capacitive touch screen
INPUT/OUTPUT:USB data port for software upgrades and file transfer
POWER Input: USB internal charger Batteries: 3400 mAh lithiumion rechargeable battery (2 included), USB recharger Run time: >5 hours (typical)

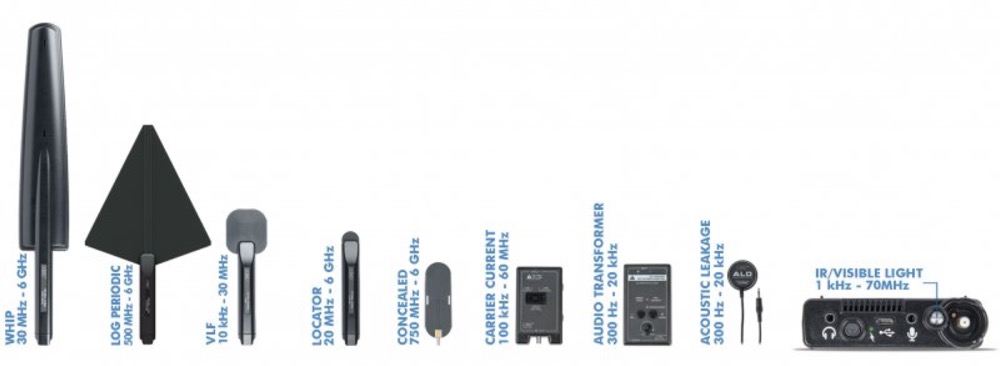

Whip Antenna 30 MHz 6 GHz
VLF Loop 10 kHz 30 MHz
Locator Probe 20 MHz 6 GHz
Concealed Antenna 750 MHz 6 GHz
Acoustic Leakage Detector 300 Hz 20 kHz
Audio Transformer 300 Hz 20 kHz
Carrier Current Probe 100 kHz 60 MHz
Log Periodic Antenna 500 MHz 6 GHz
Infrared/Visible Light Probe (builtin) 1 kHz 70 MHz
